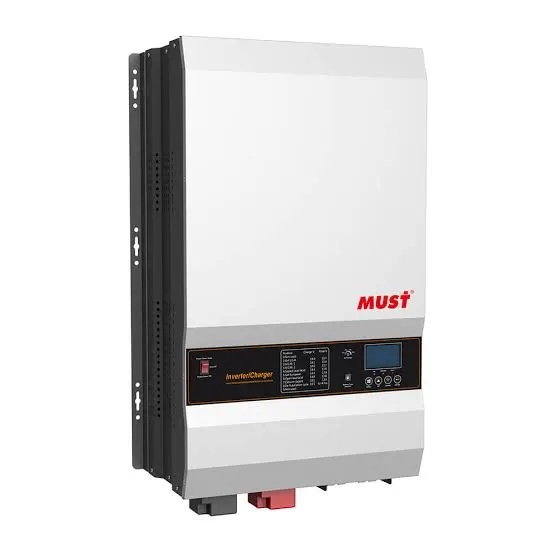

MUST 12KVA Three Phase Hybrid Solar Inverter – 48V Pure Sine Wave

The MUST 12KVA Three Phase Hybrid Solar Inverter is a high-performance energy storage solution designed for commercial buildings, industries, farms, and large residential installations. Featuring a 12,000W pure sine wave inverter, intelligent battery management, and advanced MPPT technology, it delivers reliable three-phase power while supporting both Lithium (LiFePO₄) and Lead Acid batteries.

Key Features

• 12,000W (12KVA) Three Phase Pure Sine Wave Output
• 48V Low Voltage Battery System
• Dual MPPT Solar Charge Controllers
• Supports up to 18,000W Solar Panel Input
• Maximum PV Voltage: 800V DC
• Compatible with Lithium & Lead Acid Batteries
• Up to 240A Charge/Discharge Current
• Solar, Grid & Generator Charging
• Supports 100% Unbalanced Three-Phase Output
• Parallel Operation (Up to 6 Units)
• IP66 Weatherproof Design
• LCD Display with Optional Wi-Fi Monitoring
• Multiple Built-in Protection Features

Specifications

• Rated Power: 12,000W (12KVA)
• Battery Voltage: 48V DC
• Max Charge/Discharge Current: 240A
• Max PV Input Power: 18,000W
• Maximum PV Voltage: 800V DC
• Output Voltage: 220/380V or 230/400VAC Three Phase
• Output Frequency: 50/60Hz
• Maximum Efficiency: 97.6%
• Cooling: Intelligent Fan Cooling
• Protection Rating: IP66
• Installation: Wall Mounted

Applications

Ideal for commercial buildings, factories, hotels, hospitals, offices, farms, workshops, warehouses, and large three-phase hybrid or off-grid solar power systems.
