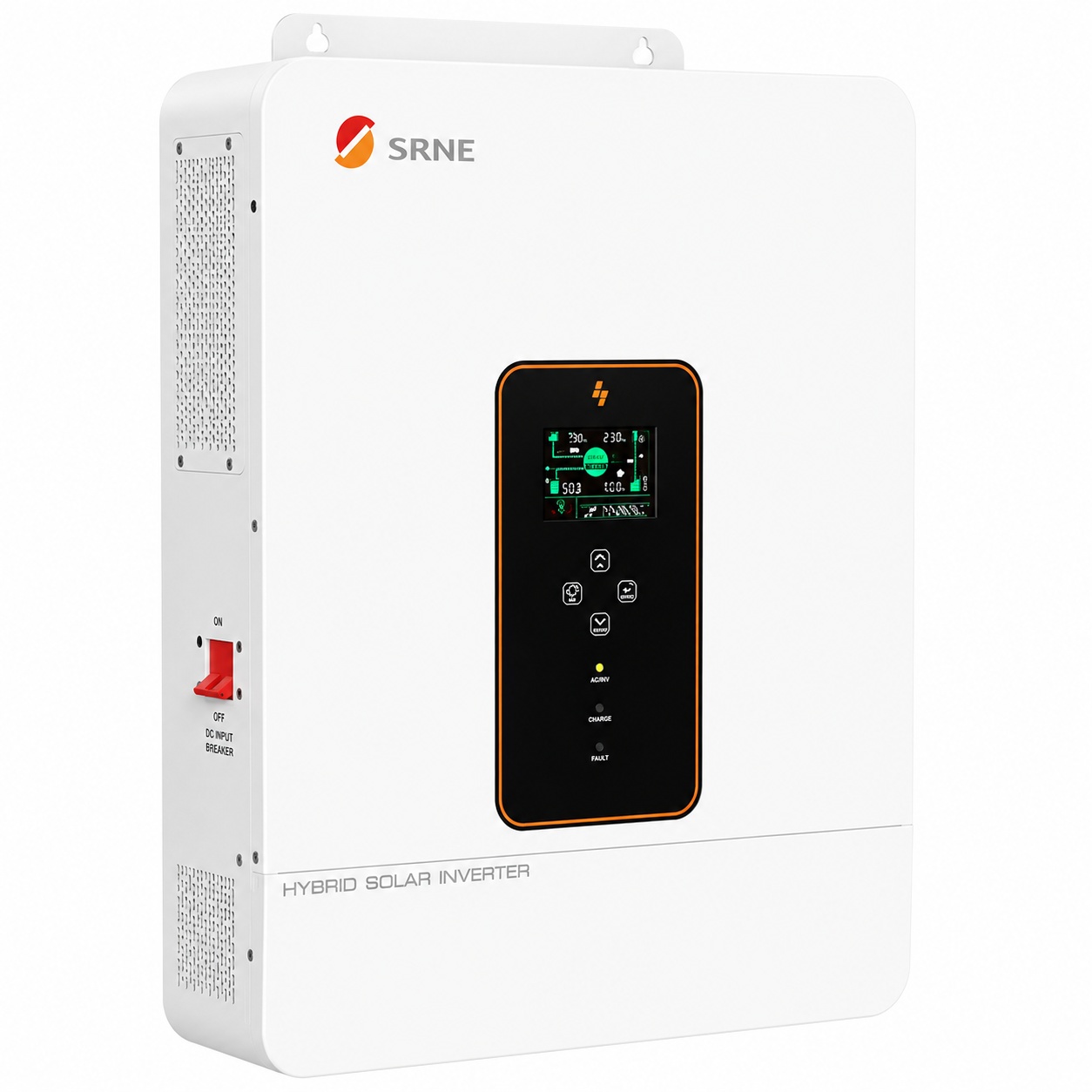

SRNE 10KVA High Frequency Hybrid Solar Inverter – 48V Pure Sine Wave

The SRNE 10KVA High Frequency Hybrid Solar Inverter is a high-capacity all-in-one solar solution featuring a 10,000W pure sine wave inverter, 200A MPPT solar charge controller, and intelligent battery charger. Designed for large homes, businesses, farms, and commercial applications, it supports both Lithium (LiFePO₄) and Lead Acid batteries for reliable and efficient power management.

Key Features

• 10,000W (10KVA) Pure Sine Wave Output
• 48V Battery System
• Built-in 200A MPPT Solar Charge Controller
• Supports up to 11,000W Solar Panels
• MPPT Voltage Range: 120–450V DC
• Maximum PV Voltage: 500V DC
• Compatible with Lithium & Lead Acid Batteries
• Solar, Grid & Generator Charging
• 10ms UPS Transfer Time
• LCD Display
• Optional Wi-Fi Remote Monitoring
• Intelligent Cooling Fan
• Multiple Built-in Protection Features

Specifications

• Rated Power: 10,000W (10KVA)
• Battery Voltage: 48V DC
• Max Solar Charging Current: 200A
• Max PV Input Power: 11,000W
• Output Voltage: 230VAC
• Output Frequency: 50/60Hz
• MPPT Efficiency: 99.9%
• Cooling: Smart Fan
• Protection Rating: IP20
• Weight: Approx. 18kg

Applications

Ideal for homes, villas, offices, commercial buildings, farms, backup power systems, and large off-grid or hybrid solar installations.
